Tank Anti-Vortex Plate

When water is drawn too quickly from a tank, it can create a vortex, a spinning motion that pulls air into the suction line. This air causes noise, airlocks, and strain on pumps. Over time, it can even damage equipment and reduce system efficiency.

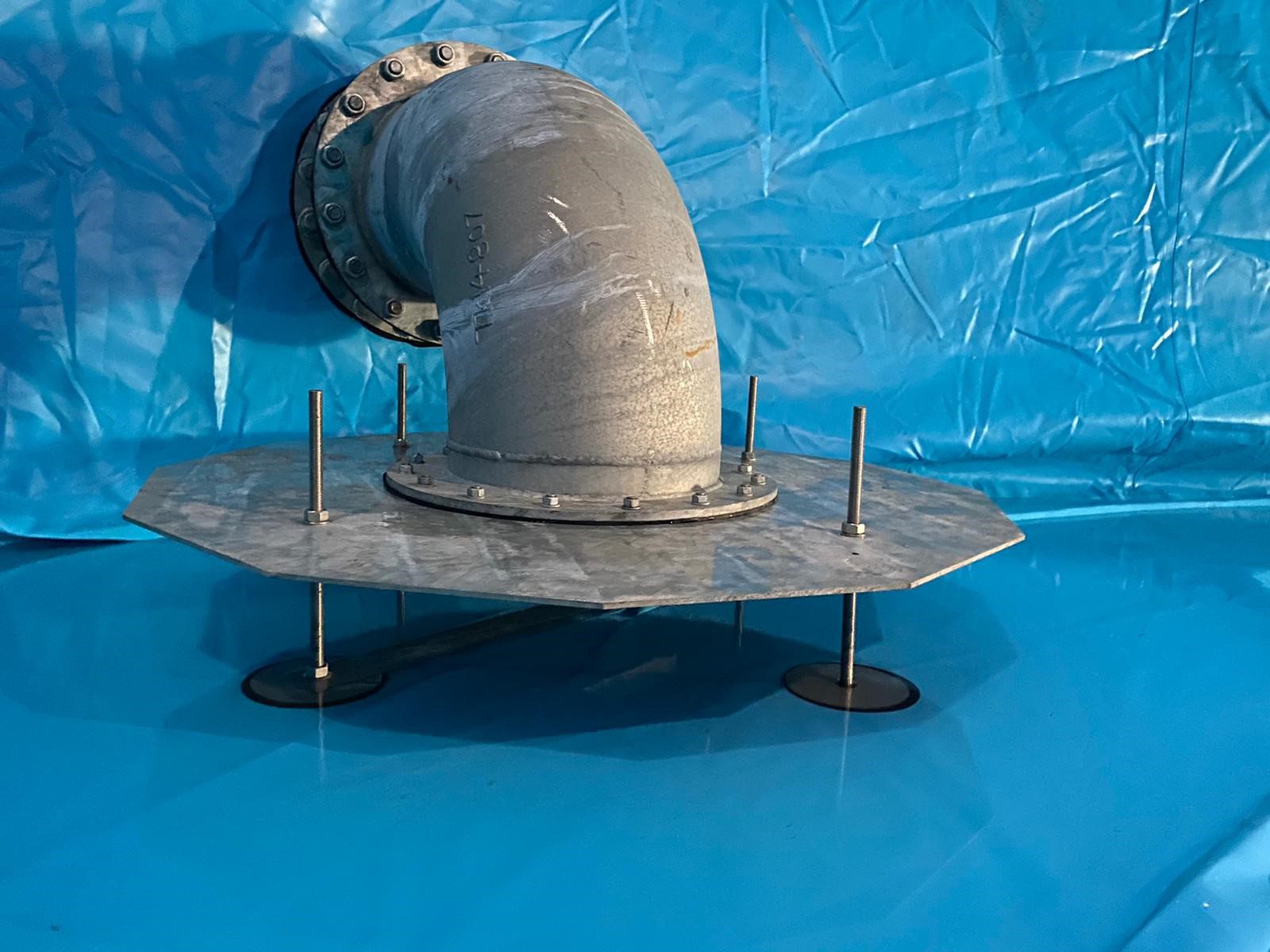

The Vortibreak® anti-vortex plate, designed by Franklin Hodge, prevents this from happening. Installed at the tank outlet, it keeps water flow steady, helping your system run safely and reliably while protecting key components from unnecessary wear.

What Makes the Vortibreak® Anti-Vortex Plate Different?

Designed for performance and compliance, the Vortibreak® plate combines more than three decades of proven engineering with straightforward installation and durable construction.

Here’s what sets it apart:

• Certified and Compliant: Approved by the Loss Prevention Certification Board (LPCB), meeting Factory Mutual (FM Global) dimensions and BS EN 12845 requirements.
• Fast Installation: The simple nut-and-bolt assembly makes on-site installation quick and convenient, reducing downtime.
• Long-Term Durability: Manufactured from hot-dip galvanised steel to BS EN ISO 1461 standards, the plate resists corrosion and maintains strength over years of use.
• Compact and Efficient: Each unit is flat packed for transport, saving time and cost during delivery and storage.

With more than 35 years of successful use across fire protection and water storage systems, the Vortibreak® plate has earned a reputation for dependable performance.

Where Are Anti-Vortex Plates Used?

Anti-vortex plates play an important role in ensuring consistent water flow across a wide range of storage applications.

They’re particularly effective in:

• Fire Protection Systems: Maintaining a constant flow for sprinkler operation and ensuring system safety during emergency use.
• Potable and Process Water Tanks: Preventing air ingress and maintaining steady flow in both domestic and industrial systems.
• Commercial and Industrial Sites: Supporting high-demand environments where pump performance and reliability are critical.

Wherever there’s a need for smooth and reliable water extraction, the Vortibreak® plate provides an effective, low-maintenance solution.

How Are Vortibreak® Plates Customised for Each System?

No two storage systems are identical, and Franklin Hodge’s Vortibreak® plates can be tailored to meet your exact specifications.

Available in a range of diameters and configurations, they can be matched to your pipework layout and tank design. This ensures a perfect fit, optimised flow, and consistent performance across your system.

Our team works closely with clients to ensure each plate is built and installed to suit the site’s operational requirements.

Why Choose Franklin Hodge for Tank Anti-Vortex Plates

With over 50 years of experience in water storage innovation, Franklin Hodge combines practical engineering expertise with a deep understanding of system safety and compliance.

Our Vortibreak® anti-vortex plates are designed for real-world reliability, backed by quality materials, proven standards, and professional installation support. Whether your system is new or being upgraded, we’ll help you keep it running smoothly for years to come.

For pricing, advice, or product recommendations, contact our team today.

FAQs

What does an anti-vortex plate do?
It prevents vortex formation in tanks, ensuring smooth water flow and protecting pumps from damage.

Is the Vortibreak® plate certified?
Yes, it’s LPCB approved and meets FM Global and BS EN 12845 requirements.

Can the plate be customised?
Yes, we offer plates in various sizes and configurations to suit different tank designs.
